Cudy AX5400 Wi-Fi 6E Bluetooth 5.3 PCI-E Adapter



Cudy AX5400 Wi-Fi 6E Bluetooth 5.3 PCI-E Adapter

A Wi-Fi 6E and Bluetooth PCI-E adapter built on an AX210 Intel module with a heatsink and two antennas on a magnetic base. Install it to equip your Windows 11 Intel-based PC with advanced wireless connectivity.

---



• Tri-Band Wi-Fi 6E
• 2.4 Gbps + 2.4 Gbps + 574 Mbps WiFi ¹
• Bluetooth 5.3
• Intel AX210 Module
• Works on Windows 10/11 64-Bit
• Heatsink

Model Version	WE4000 2.0
CPU	Chipset	Intel AX210
Wireless	6 GHz Wi-Fi Speed	2402 Mbps
	5 GHz Wi-Fi Speed	2402 Mbps
	2.4 GHz Wi-Fi Speed	574 Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	2× Detachable Antennas on a Magnetic Base
	Detachable Wi-Fi Antennas Connector	RP-SMA Female
Reliability	Environment	Ambient Operating Temperature: 0 ℃ ~ 70 ℃ (32 ℉ ~158 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Requirements	Hardware Requirement	Requires a PCI-E 1x or higher standard slot on the motherboard for powering and the WiFi function Requires a USB 9-PIN slot on the motherboard for the Bluetooth function
	Compatible OS	Windows 10/11 64-Bit
	Driver Installation	Manual driver installation for Windows. Driver available in the Download Center.
Certifications	FCC, CE
Mechanical	Dimension	Device Body: 120.8×98.4×21.5 mm 4.76×3.87×0.85 inches Magnetic Antenna Base: Φ94.5×221.5 mm Φ3.72×8.72 inches
	Product Weight	100 g (3.53 oz.)

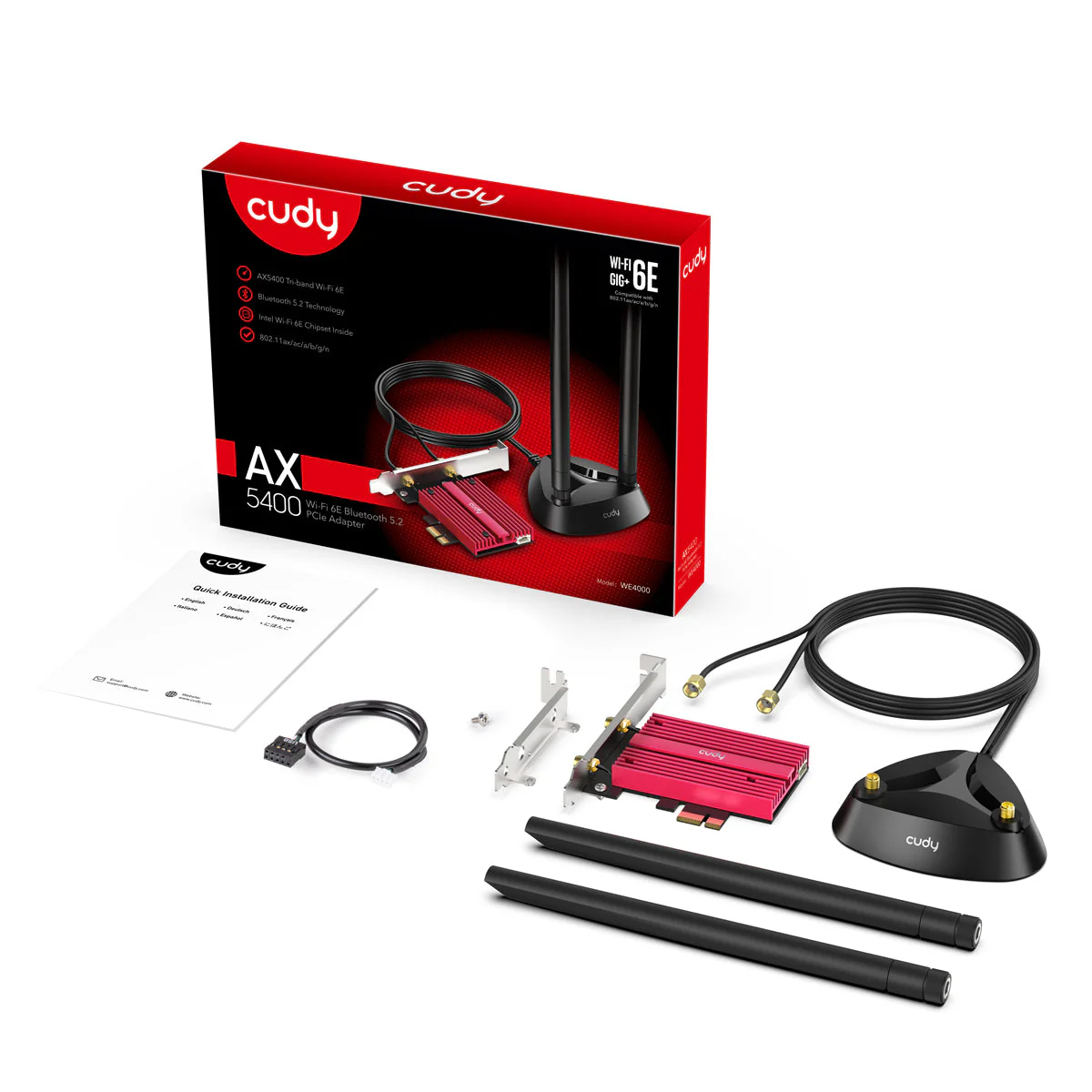

Package Content	WE4000 Detachable Antennas Magnetic Antennas Base Bluetooth to 9-PIN USB Cable Low-Profile Bracket Installation Guide
Ordering Information	Retail Package Weight	400 g (14.11 oz.)
	Retail Package Dimension	237×185×35.5 mm 9.33×7.28×1.4 inches
	Carton Net Weight	12.0 kg (26.46 lbs)
	Carton Gross Weight	13.2 kg (29.1 lbs)
	Units per Carton	30
	Carton Dimension	59.5×38.4×25.5 cm 23.43×15.12×10.04 inches
